  • API 5L X42 Pipes

Name:API 5L X42 Pipes
Specification:API 5L
Size:1/4" to 120"
Rating:SCH10 To SCHXXS
Steel Grade:API 5L X42, X46, X52, X56, X60, X65, X70
MOQ:100 KGS
Packing:Standard seawory/airworthy packing
End:Plain ends or bevelled ends
Delivery term:FOB, CIF, CNF, EXW
Payment term:TT or L/C at sight
Loading Port:XINGANG
Deliver mode:By sea, By air, By land

Product Description

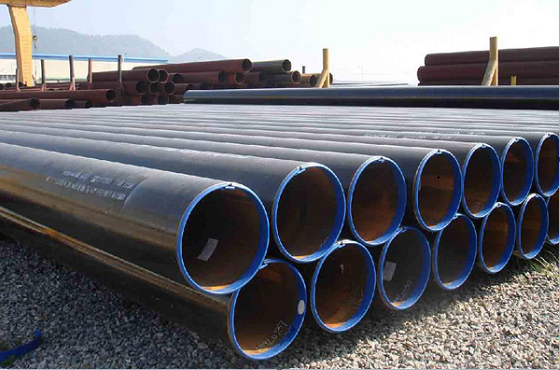

API 5L X42 Line Pipes

Hebei Zhongji Is A Premier Supplier For Your API 5L X42 Line Pipes Needs.

Hebei Zhongji carry a large inventory of new, API 5L seamless and welded line pipes for clients in the oil and gas industry. We offer a variety of industry-standard coatings such as Fusion Bonded Epoxy and TGF-3, as well as customer- and application-specific optionsto meet your requirements.



With sizes ranging from 1/2” OD to 30” OD,we can meet the requirement of any midstream project, well hook up, or othertransmission needs you may have. Our inventory ranges from API 5L Grade B allthe way up to API 5L Grade X70. We offer scheduled options, including schedule40, schedule XS and schedule 80 as well as non-scheduled sizes.



API 5L X42 Line Pipe Sizes

: 1/2 36 O.D.

API 5L X42 Line Pipe Dimensions

API 5L X42 Line Pipe Weight

Line Pipe Grades

:  API 5L B, X42, X46, X52, X56, X60, X65, X70

API 5L X42 Line Pipe Wall Thicknesses

: Light Wall – Extra Heavy,SCH10 through SCH XXS



API 5L X42 PSL1 Line Pipe Chemical Compositions

Chemical Composition of API 5L X42 PSL 1

Mass fraction, based upon heat and product analysis a

Seamless Pipe

C

Mn

P

S

V

Nb

Ti

maxb

max.b

max.

max.

max.

max.

max.

0.28

1.20

0.030

0.030

c,d

c,d

d

Welded Pipe

0.26

1.20

0.030

0.030

c,d

c,d

d







0.50% maximum for copper, 0.50% maximum fornickel, 0.50% maximum for chromium, and 0.15% maximum for molybdenum.

For each reduction of 0.01% below thespecified maximum concetration for carbon, an increase of 0.05% above thespecified maximum concentration for manganese is permissible, up to a maximumof 1.65%

unless otherwise agreed, the sum of theniobium and vanadium contents shall be 0.06%.

The sum of the niobium ,vanadium andtitanium concentratons shall be 0.06%.

Unless otheriwse agreed.

unless otherwise agreed, the sum ofniobium, vanadium and titanium concentrations shall be 0.15%



API 5L X42 PSL1 Line Pipe Mechanical Properties



Mechanical Requirements



Y.S

T.S

ELONGATION

Mpa(psi)

Mpa(psi)

min

min

min

245(35 500)

415(60 200)

28%



API 5L X42 PSL2 Line Pipe Chemical Composition



Chemical Composition of API 5L X42 PSL 1 / 2



Mass fraction, based upon heat and product analysis % maximum

Carbon Equivalent A

% Maximum

Cb

Si

Mnb

P

S

V

Nb

Ti

Other

CEIIW

CEPcm

Seamless & Welded Pipes

L290R OR X42R

0.24

0.4

1.2

0.025

0.015

0.06

0.05

0.04

e

0.43

0.25

L290Q OR X42Q

0.18

0.45

1.4

0.025

0.015

0.05

0.05

0.04

e

0.43

0.25

 Welded Pipe

L290M OR X42M

0.22

0.45

1.3

0.025

0.015

0.05

0.05

0.04

e

0.43

0.25



Unless otherwise agreed, the sum of thniobium & vanadum concentrations shall be = 0.06%.

Unless otherwise agreed, 0.50% maximum forcopper, 0.30% maximum for nickel, 0.30% maximum for chromium, & 0.15%maximum for molybdenum.



API 5L X42 PSL2 Line Pipe Mechanical Properties



Mechanical Requirements



Y.S

T.S

Elongation

Mpa(psi)

Mpa(psi)

min

min

min

290(42 100)

495(71 800)

f




The specified minimum elongation shall beas determined using the following equation:



API 5L X42 Pipe Usage

American Petroleum Institute standard 5L.API pipes & API 5L X42 PSL 1 / 2 are exclusively used for transmission ofgas and petroleum products.



API 5L X42 Line Pipe Specification

API 5L X42

(PSL1)

(PSL2)

Minimum Yield Strength:

42,100 psi

42,100 psi

Maximum Yield Strength:

None

71,800 psi

Minimum Tensile Strength:

60,200 psi

60,200 psi

Maximum Tensile Strength:

None

110,200 psi

Notes: This is a standard line pipe grade specified in API (American Petroleum Institute).





Click here to request a quote for API 5L X42 Line pipes.
